Iso Surfaces

With this application, users can create surfaces of equal values from 3D data in a semi-automated fashion. The application uses a marching cubes algorithm from the open-source scikit-image package. The algorithm works by ‘marching’ across the volume, identifying iso-valued regions and adding them to an output triangulation (surface). Surfaces are exported to Geoscience ANALYST for viewing and editing.

_images/iso_surface_landing.png

New user? Visit the Getting Started page.

Application

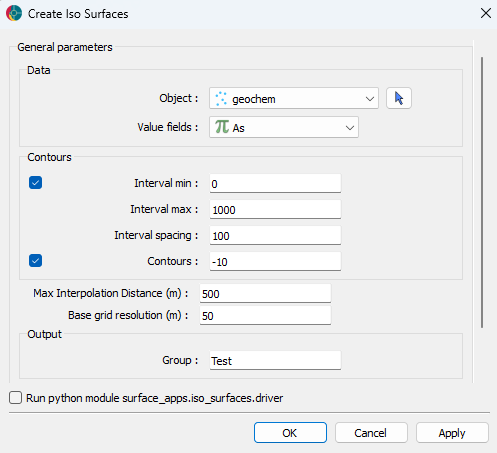

The following sections provide details on the different parameters exposed in the user-interface (iso_surface.ui.json).

_images/iso_surfaces_ui.png

Data Selection

  • Object: Select the target data object from the dropdown list. Objects should be

    distributed in 3D and may be of type Points, Curve, Surface, Octree, or BlockModel.

  • Data: Select the data attribute to use for iso-surface detection. Can be any

    FloatData children of the selected Object.

Contour Parameters

List of parameters controlling the detection and filtering of iso-surfaces. The iso-surface levels can be provided as either a min/max/spacing interval or a fixed list.

  • Interval min: Interval minimum.

  • Interval max: Interval maximum.

  • Interval spacing: Interval spacing.

  • Contours: These are fixed iso-surface levels outside of any provided interval ranges

  • Max interpolation distance: Maximum distance between points for interpolation into base grid.

  • Base grid resolution: Resolution of the grid used by scikit-image to create the contours.

Output Preferences

  • Group: Results are stored in a Container Group using the name provided here.

    Each level will result in a separate surface stored under the group.
